Automated Temperature Test Chamber
Automated Temperature Test Chamber
- Intelligent temperature control
- Safety protection device
- Automated operation
- Easy operation
- -70°C to +150°C
- Customized product
- Continuous testing
- Track-type structure
Description
Specification
Video
Description

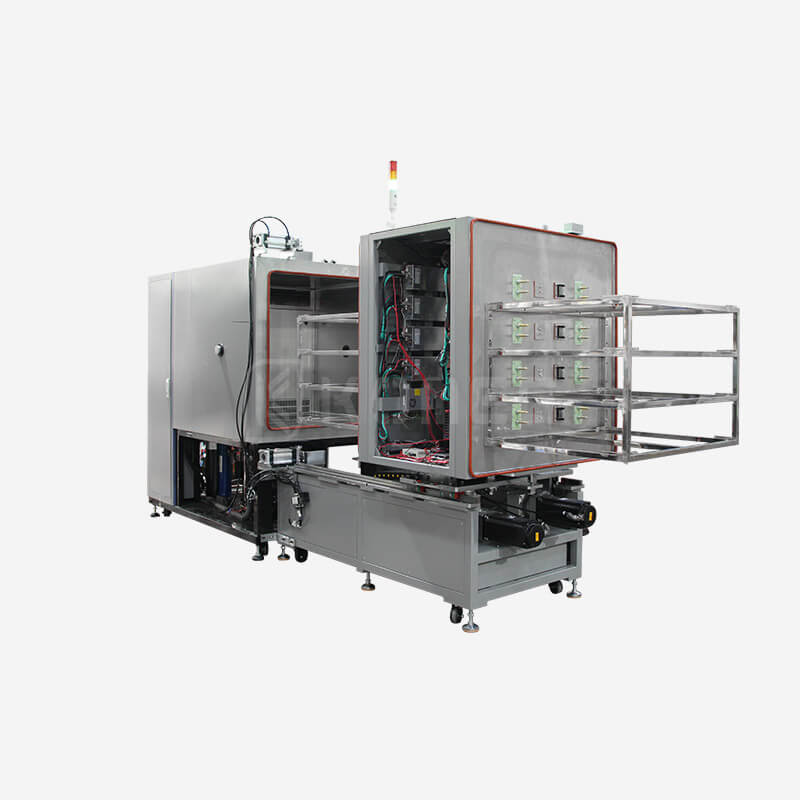

Automated temperature test chamber, also known as fully automatic rotating temperature chamber, track-type aging chamber, etc., has a temperature range of -70°C to +150°C. It consists of a test chamber, conveying device, automatic rotating door, and sample rack.
Features of Automated Temperature Test Chamber
- Track-type structure, can be used in conjunction with a production line for continuous testing.
- The automated operation mode not only saves labor but also enhances operational flexibility and safety.
- The sample movement is more convenient and flexible, which improves testing efficiency.
Specification
Model | KMT-1000S-C2 | |
Inner Dimensions (mm) | W | 1000 |
H | 1000 | |
D | 1000 | |
External Dimensions (mm) | W | 1200 |
H | 2035 | |
D | 2077 | |
Temperature Range | -70℃~+150℃ | |
Observation Window (mm) | 460×560 | |
Temperature Uniformity | ≤2.0℃ | |
Temperature Fluctuation | ±0.5℃ | |
Temperature Deviation | ≤±2.0℃ | |
Heating Rate | 3℃/min, empty | |
Cooling Rate | 2℃/min, empty | |
Power | 380V AC(±10%)50Hz±0.5 |
