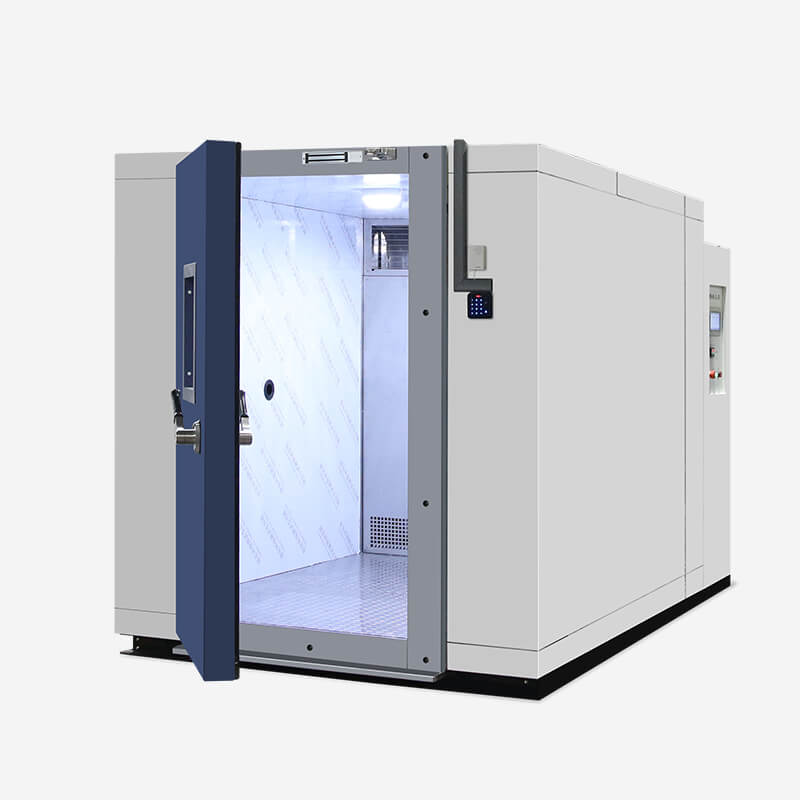

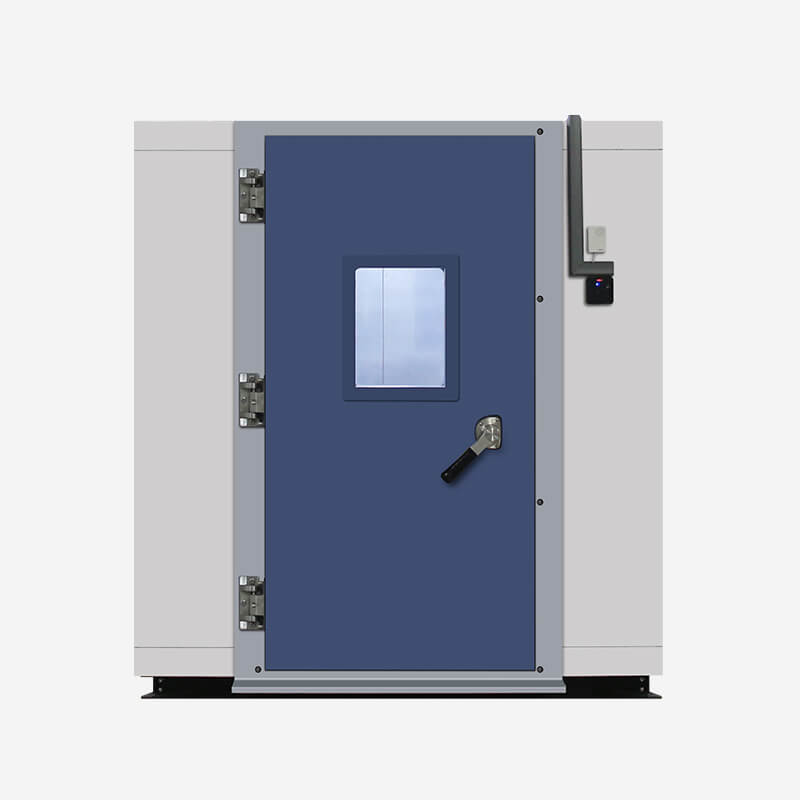

Drug Stability Test Chamber
Drug Stability Test Chamber
- SUS 304 stainless steel plate
- Automatic water filling system
- 7-inch controller
- Operation buttons
- Observation window
- Drug testing
- Lighting device
- Communication interface
- Air-cooled
- Over-temperature protection system
- Over-current and overload safety protection device
Drug stability test chamber is used to assess changes in drug stability under varying temperature and humidity conditions. Through testing, the optimal temperature and humidity levels for preserving the effectiveness of drugs are determined.
Features
- Equipped with an access control system, the door can be accessed using either a password or a fingerprint. It features double protection: first, it has an anti-lock function and can be opened from the inside. Second, in the event that the door cannot be opened from the inside, the person inside the pharmaceutical chamber can press an alarm button to alert those outside.
- The color touchscreen supports multiple languages and can be programmed up to 50 groups. It is equipped with RS232, RS485, USB, and Ethernet interfaces for data transmission and remote monitoring.
- The dual compressors can be switched freely, ensuring that the machine operates continuously for extended periods and maintains the stability of the testing process.
- The multilayer vacuum glass window features an electronic defogging film for heating and anti-sweat properties, making it easy to observe the conditions inside the pharmaceutical chamber.
- The stability test chamber is made of splicing library boards, which is convenient for installation and demolition.
Drug Stability Test Chamber Solution | |
Cooling method | Air cooled |
Inner Dimensions W×H×D(mm) | W1600*H2000*D2000 |
External Dimensions W×H×D(mm) | W1800*H2200*D3150 |
Door Dimensions(mm) | W1600*H2000 |
Observation Window(mm) | W300*H400 |
Temperature range | +20℃ to +65℃ |
Temperature deviation | ≤±2.0℃ (empty) |
Temperature fluctuation | ≤±0.5℃ (empty) |
Temperature uniformity | ≤2.0℃ (empty) |
Humidity range | 40% to 95% RH |
Humidity deviation | ±3.0%RH(˃75%RH), ±5.0%RH(≤75%RH) |
Humidity fluctuation | ±2.0%RH |
Humidity uniformity | ±3.0%RH(empty) |
Power | 380V AC 50±0.5Hz |
