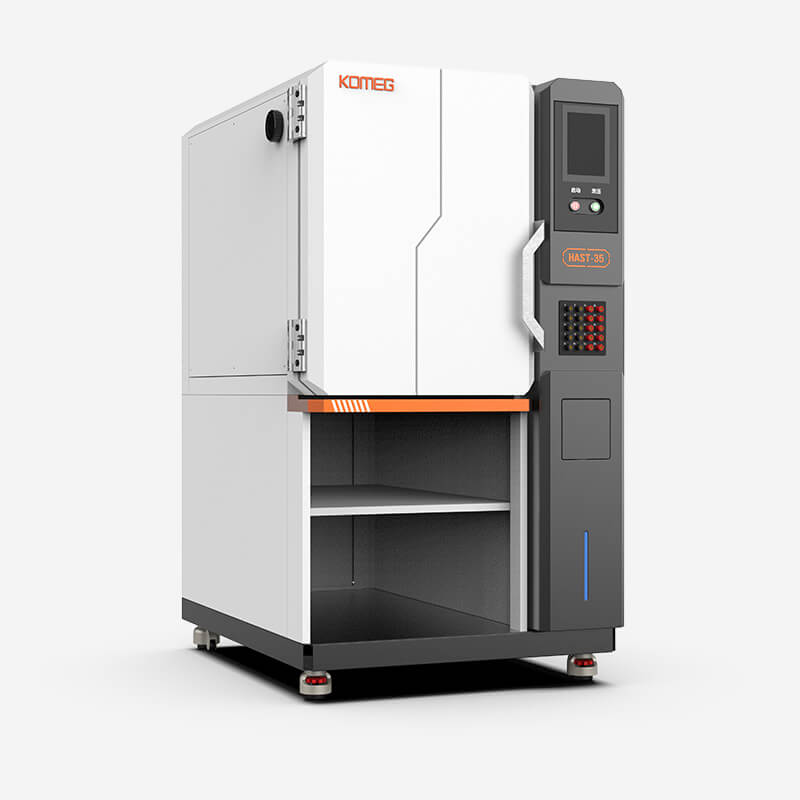

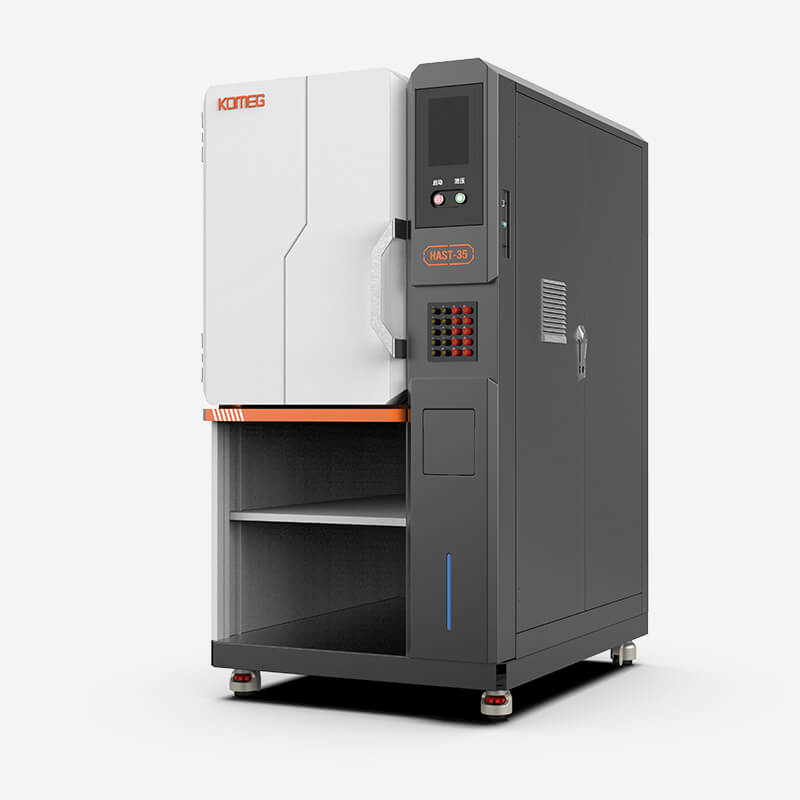

HAST (PCT) Chamber
HAST (PCT) Chamber
- Highly accelerated stress test chamber
- Achieves shorter test times
- Available in different capacity types
- Safe and reliable door lock by electric clamp system
- Customizable specimen signal terminals
- Conforms to various testing standards for semiconductors.
- Programmable touch screen controller
- Multilingual user interface
- RS485, Ethernet communication port, USB download port

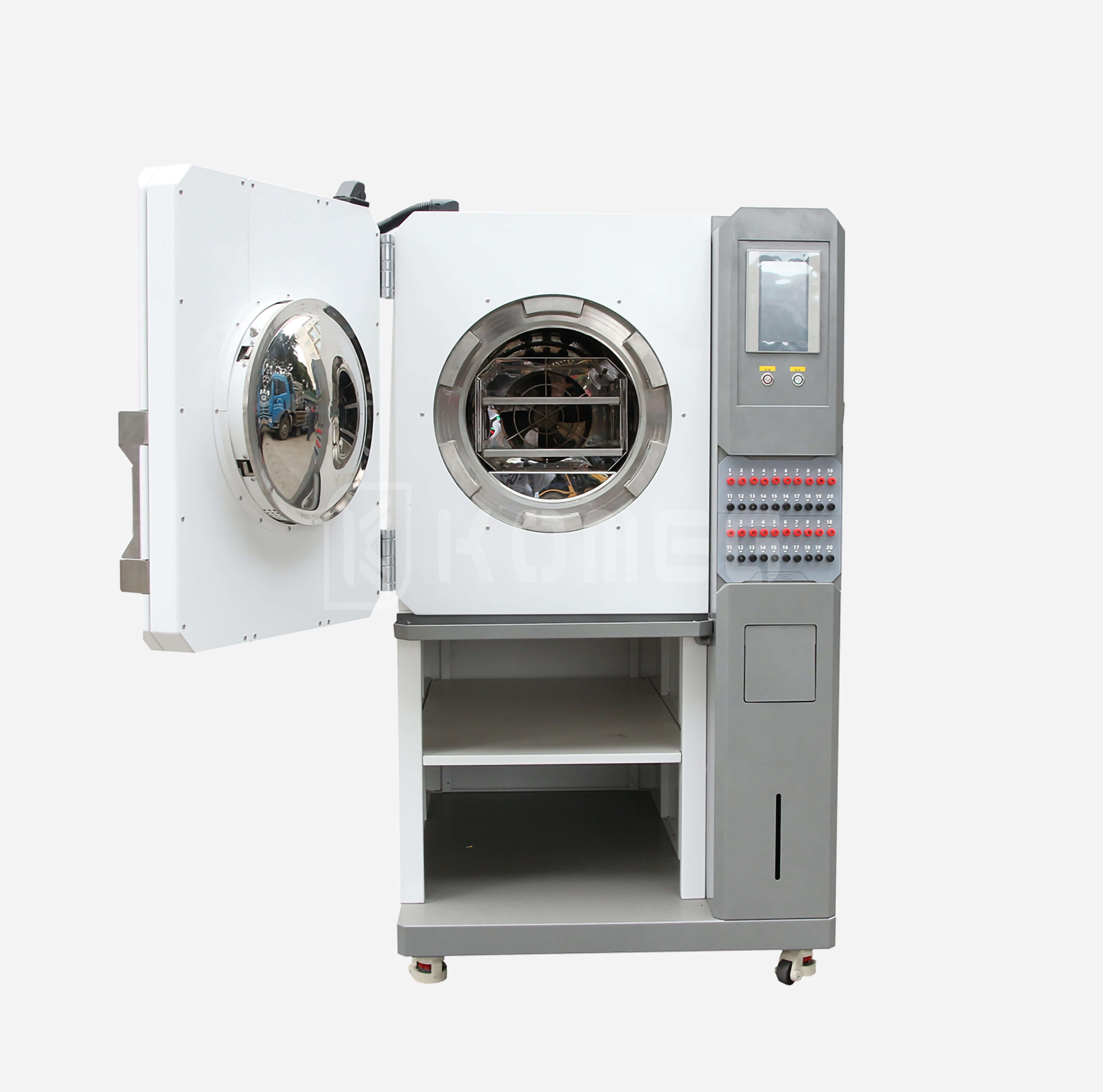

HAST (Highly Accelerated Stress Test) chambers can perform very extreme accelerated test, which is applied to test high temperature and high humidity resistance of product or material under condition of specified temperature (above 100°C), humidity (65% to 100%) and specified pressure. HAST is one method of environmental tests used for electrical and electronic parts and devices. HAST (PCT) Chamber is mainly used for testing semiconductors, IC packing, plastic sealed parts and so on, meeting JESD22-A100 to A118 bias (BHAST) or unbias (UHAST) accelerated moisture resistance test and pct test. HAST (PCT) Chamber adopts a double-layer arc inner tank design to prevent condensation and dripping water. Thereby avoiding the influence of test results due to the direct impact of superheated steam.
Features of HAST (PCT) Chamber
- Exterior high-quality cold steel with static color spray.
- Inner SUS316 matte stainless steel.
- Ultra-fine glass wool insulation layer, flame retardant grade A1.
- KOMEG 7 inch touch screen controller.
Model No. | KM-HAST-35 | KM-HAST-55 | |
Interior Size (mm) | Diameter(Φ) | 350 | 550 |
Depth(D) | 450 | 650 | |
Exterior Size (mm) | Width(W) | 730 | 1150 |
Height(H) | 1630 | 1550 | |
Depth(D) | 1100 | 1400 | |
Temperature Range | +105ºC~+135ºC | ||
Humidity Range | 65%RH to 100%(Unsaturation control) 100%RH (Saturation control ) | ||
Pressure Range | 0.05~0.3MPa Gauge pressure: +0.2~200kPa Absolute pressure: 100 ~ 300kPa | ||
Temperature Fluctuation | ± 0.5°C | ||
Temperature Uniformity | ≤ 3.0°C | ||
Temperature Deviation | ≤ ±3.0°C | ||
Humidity Fluctuation | ±3.0% RH | ||
Humidity Deviation | ±5.0% RH | ||
Pressure Deviation | ≤ ±2kPa | ||
Heating Rate | ±25ºC~+135ºC within 45 min (average in whole process) ( no-load,no heating) | ||
Pressurization Time | Normal Pressure ~200kPa within 20 min | ||
Power Supply | 220V AC 1Ø 50Hz | ||
Noise | ≤68dB (1 meter distance from the door) | ||
Safety Protection Device | NFB (No fuse breaker), over pressure, overheat and over current protectors for compressor, over temperature protectors, overload protector of fan, dry heat protector, short of water protector. | ||
