Solar Panel Test Chamber
Solar Panel Test Chamber
- Photovoltaic PV module testing
- 85/85 testing
- Robust design & Reliable performance
- Wide temperature humidity range and volume selection
- RS485, Ethernet communication port, USB download port
- Programmable touchscreen controller
- Multilingual User Interface
- Mobile casters, Shelves, Cable port, Lighting device
- IEC 61215, IEC 61646
In order to ensure the power conversion rate of solar panels under various climatic conditions, a series of tests are required to meet the relevant test standards for solar panels. KOMEG climatic test chambers can meet the thermal cycling test, humidity freeze test and 85℃/85% RH test in the solar panel test standards.
Test methods of solar photovoltaic modules.

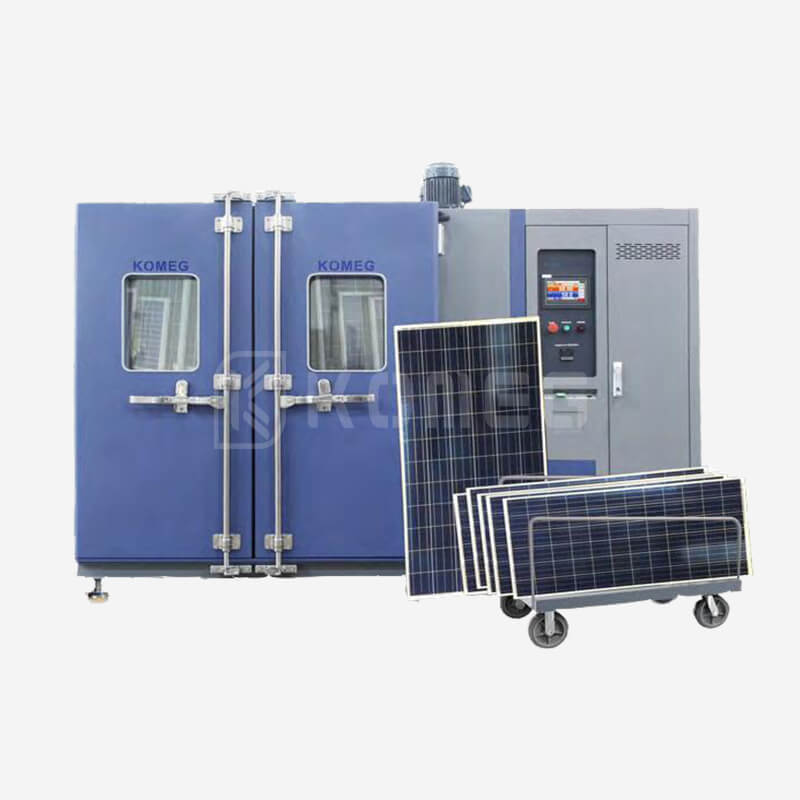

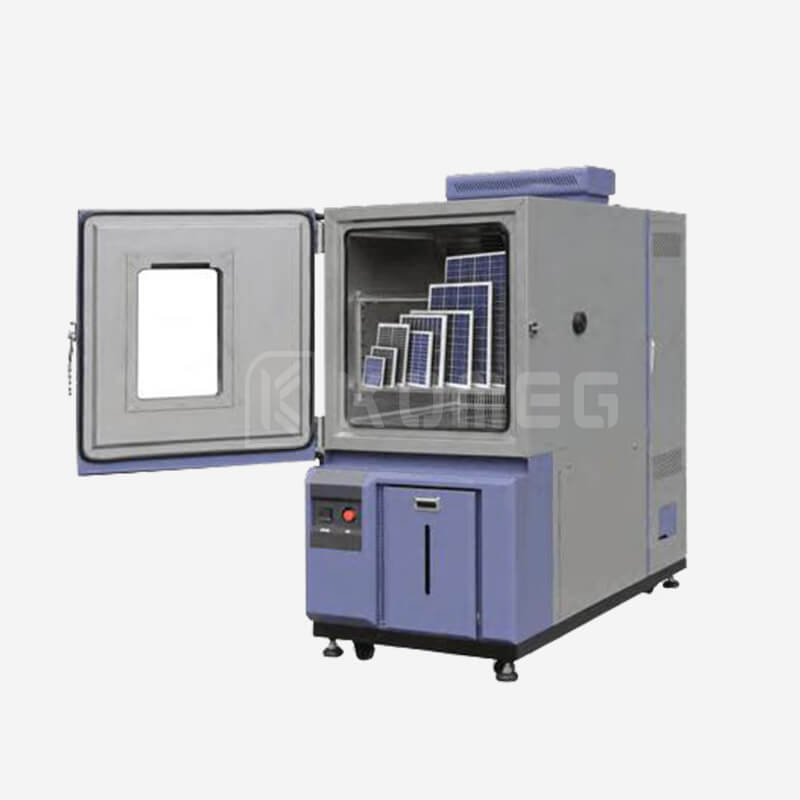

Solar panel test chambers are divided into small/medium environmental test chambers (1-1.5m³) and walk-in environmental test chambers (2-4.5m³) according to the size and number of solar panels. KOMEG can customize solar panel climatic test chambers according to your needs.
Solar Panel Test Standards
- IEC 61215 (Standard for crystalline silicon terrestrial PV modules)
- IEC 61646 (Standard for thin-film PV modules)
- IEC 61701 (Salt mist corrosion testing)
- IEC 61730 (Standard for PV module safety)
- IEC 62716 (Ammonia corrosion testing of photovoltaic (PV) modules)
- IEC 60068-2-68 (Blowing sand resistance testing)
- UL 1703 (Standard for flat-plate photovoltaic modules and panels)
- UL 61730 (Photovoltaic module safety qualification)
- …
Photovoltaic PV module testing chamber solution (Example) | |
Temperature Range | 0~+100℃/-40℃~+100℃ |
Humidity Range | 20%~98%RH |
Heating-up time | +20℃~+100℃, within 50 min (no load) -40℃~+90℃, within 80 min (load) |
Pull-down time | +20℃~0℃, within 60 min (no load) +90℃~-40℃, within 110 min (load) |
Power | 380V AC(±10%) |
Cooling Method | Water-cooled |
