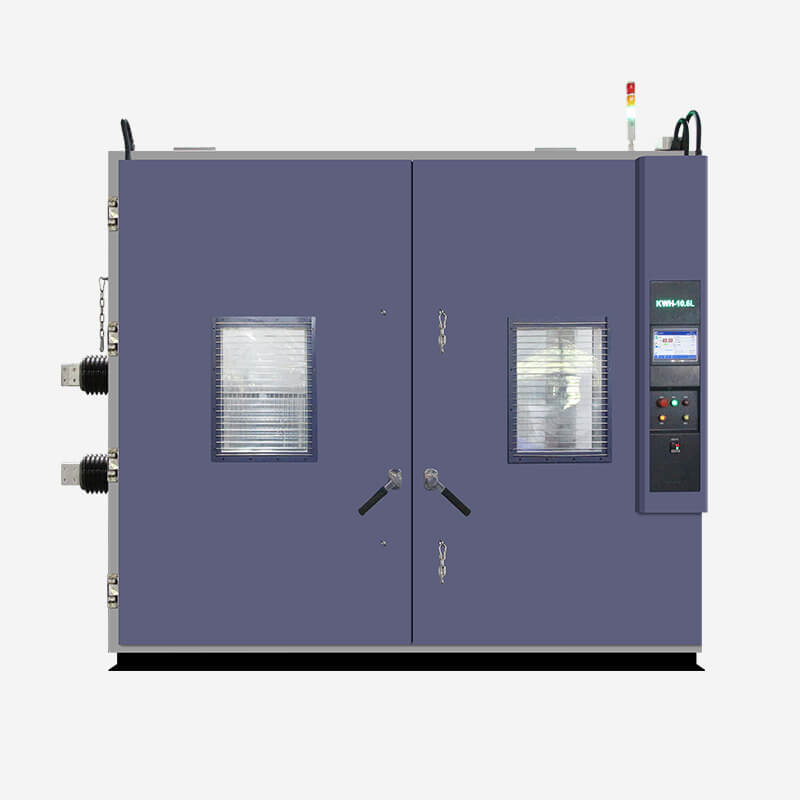

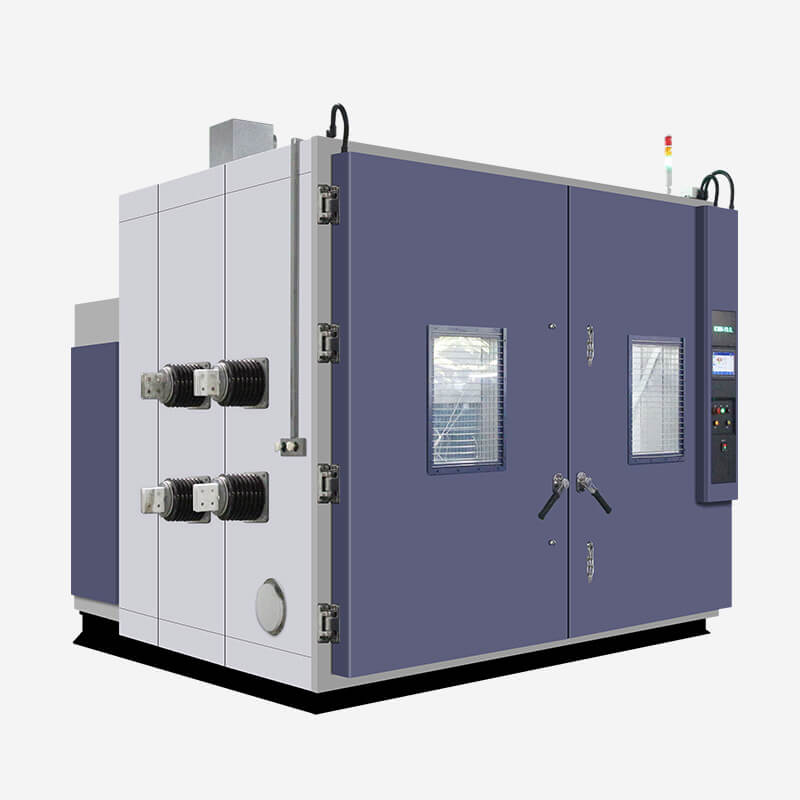

Walk-in Temperature and Humidity Test Chamber KWH10.6L
Walk-in Temperature and Humidity Test Chamber KWH10.6L
- Large environmental chamber
- Explosion proof walk-in chamber
- Various safety protection devices
- Energy-saving design
- High-quality materials
- Observation windows
- Color touch screen
- Accept customization
Walk-in temperature and humidity test chamber is designed for testing large products and can also be used for batch testing of small products, components and materials.
Since the tested products have the risk of fire and explosion, we have added explosion-proof design to the walk-in test chamber, including explosion-proof windows, explosion-proof chains, alarm lights, etc. The walk-in temperature and humidity test chamber can be used in the fields of national defense, aerospace, automation, automobiles, electronic appliances, plastics, chemicals, and pharmaceuticals.
Features of Walk-in Temperature and Humidity Test Chamber
- High-strength fully welded non-slip bottom plate, not easy to deform, long service life.
- Double-door design, larger test space, convenient for placing samples.
- One observation window on each side to view the test process.
- Self-developed controller operating system, easy to operate.
- Local area network (LAN) RS232/485 connection, easy to monitor data.
- Integral and modular design, easy to assemble.
- Custom sample trolley.
Model Number | KWH-10.6L |
Temperature Range | L: -40℃to+120℃ |
Volume | 10.6m³ |
Inner Dimensions W×H×D(mm) | 3000×2200×1600 |
External Dimensions W×H×D(mm) | 3300×2600×3800 |
Temperature Fluctuation | ±0.5℃ |
Temperature Deviation | ±2.0℃ |
Temperature Uniformity | ≤2.0℃ |
Humidity Range | 20% ~ 98% R.H |
Humidity Fluctuation | ±2.0% RH |
Humidity Uniformity | ±3.0% RH (no load) |
