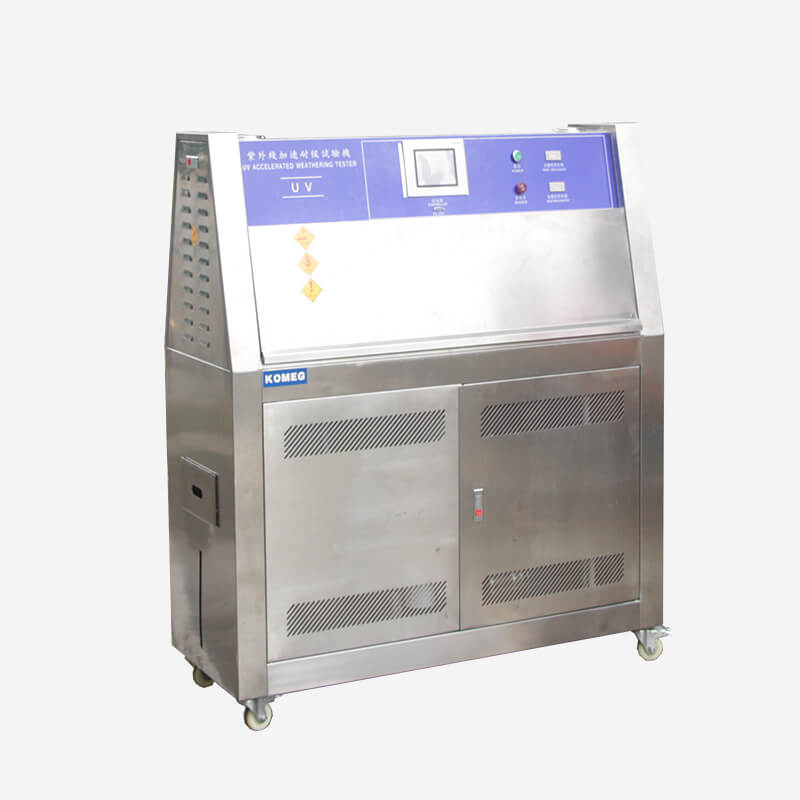

UV Accelerated Aging Test Chamber
UV Accelerated Aging Test Chamber
- Aging test chamber
- QUV test chamber
- UVA-340/UVB-313
- RT+10℃~90℃
- Outdoor materials
- Safety protection device
UV accelerated aging test chamber is also called UV weathering test chamber and QUV test chamber, which is used to simulate outdoor environment, such as sunlight, rain, dew. The UV accelerated aging test chamber can test the aging condition of the product after long-term outdoor use in a short time, which greatly saves the test time.
The UV accelerated aging test chamber has two optional lamps, one is UVA-340 lamp, which can well simulate the short-wave UV in sunlight. The other is UVB-313 lamp, which is more intense than UVA-340 lamp, further accelerating the aging process.
Features of UV Accelerated Aging Test Chamber
- Temperature, humidity, light, spray, condensation
- Best UV simulation
- Long service life lamps
- Stable operation, low failure rate
- Over temperature protection
- Water shortage protection
- Dry burn protection
- Water tank failure alarm device
Application of UV Accelerated Aging Test Chamber
Plastic material
Paint material
Rubber material
New Energy Products
Building materials
Printing material
Packaging materials
Textile
Car
Lamps
…
Model | KM-UV-40 |
Inner Size W*H*D(mm) | 1140×390×400 |
Lamp | UVA-340/UVB-313 |
Lamp Number | 8 |
Lamp Power | 40W |
Lamp Service Life | About 600-1800 hours Q-panel lamp: about 1800~2000 hours |
Temperature Range | RT+10℃~90℃ |
Temperature Fluctuation | ≤±0.5℃ |
Temperature Uniformity | ≤±2℃ |
Test Time | 1~9999S,M/H adjustable |
