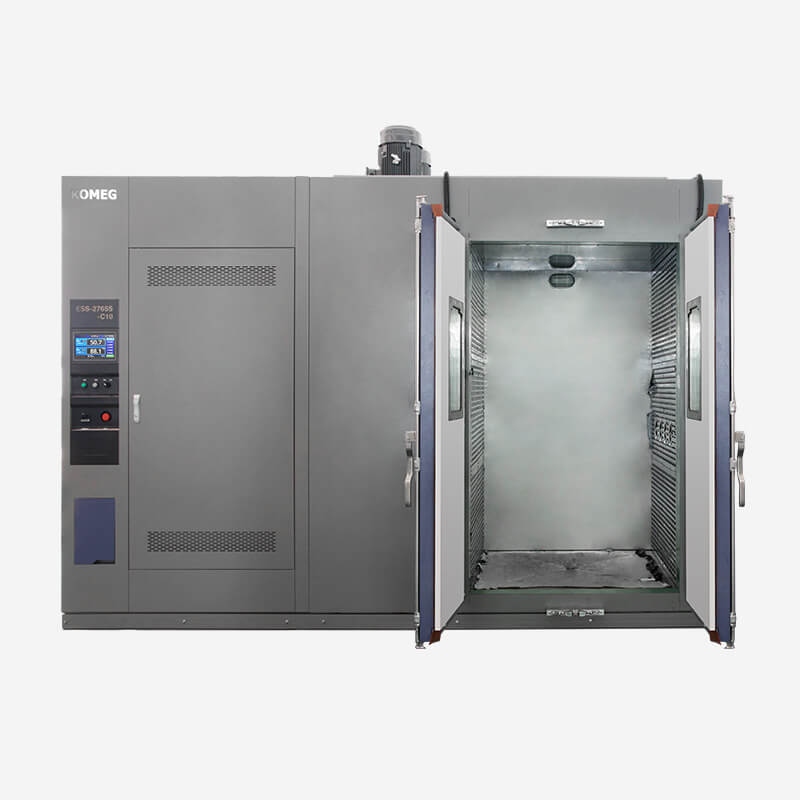

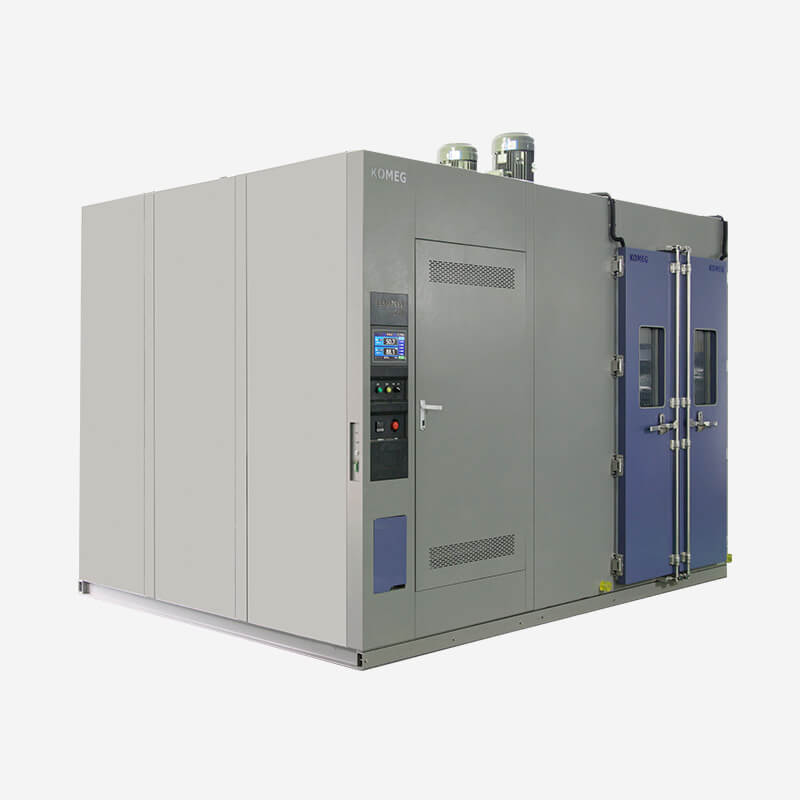

Walk-in Thermal Cycle Chamber
Walk-in Thermal Cycle Chamber
- Air-cooled and water-cooled optional
- Temperature and humidity testing
- Rapid rate temperature change
- ESS testing
- Stainless steel material
- Color touch screen
- Safety protection device
Description
Specification
Video
Description
Application
Walk-in Thermal Cycle Chamber is used to test the adaptability of products under rapid or gradual temperature changes, especially for environmental stress screening tests of electronic and electrical products. The volume of KOMEG’s standard rapid-rate thermal cycle chambers ranges from 80L to 1000L. If you need other volumes, such as this 2765L walk-in thermal cycle chamber, we provide products customization services.
Why choose us
- Production capacity: 18,000 square meters of modern workshops, digital production management mode, to ensure timely delivery of products.
- Technical level: Computational fluid dynamics is used for product design, and the control system is independently developed to make KOMEG’s environmental chambers more intelligent and energy-saving.
- Brand reputation: 30+ years of experience, with a number of certificates and patents, highly recognized in the industry.
Specification
Model Number | ESS-2765S-C10 |
Volume | 2765L |
Inner Dimensions W×H×D(mm) | 1200×1920×1200 |
External Dimensions W×H×D(mm) | 3750×2470×2750 |
Temperature Range | -60℃~+125℃ |
Temperature Fluctuation | ≤±0.5℃ |
Temperature Uniformity | ≤2℃ |
Heating (Cooling) rate | ≥10℃/min |
Humidity Range | 20%~98% R.H |
Humidity Fluctuation | ±2% RH |
Humidity Uniformity | ±3% RH |
Noise | ≤70dB |
Video
GET A QUOTE
